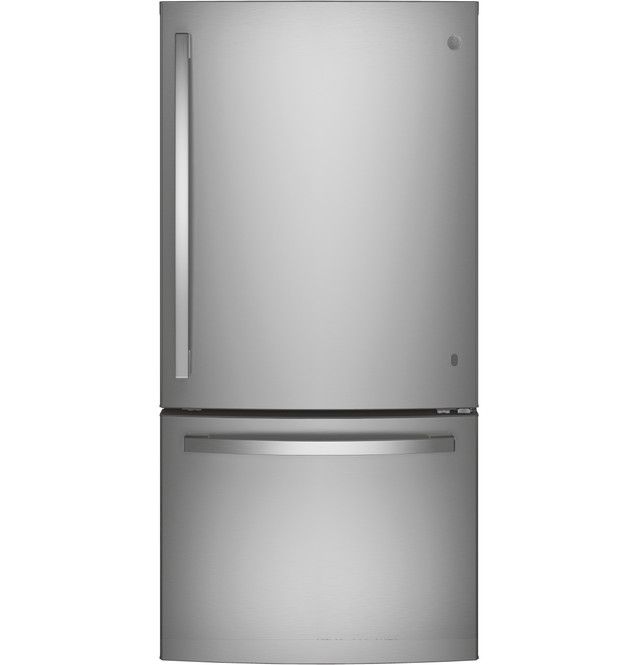

GE 24.8 Cu. Ft. Bottom-Freezer Drawer Refrigerator - Energy Star

Dimensions

• Height: 69 7/8 inches
• Width: 32 3/4 inches
• Depth: 37 1/2 inches

Appearance

• Color Appearance: Fingerprint Resistant Stainless
• Door Stops: Yes
• Door Swing: Hinges on Right (Reversible, no kit required)
• Exterior Design: Contoured High-Gloss with Hidden Door Hinges
• Handle Color: Fingerprint Resistant Stainless
• Handle Design: Designer Style
• Textured Steel Case: Case Only - Dark Gray

Capacity

• Freezer Capacity: 7.26 cu ft
• Fresh Food Capacity: 17.55 cu ft
• Total Capacity: 24.80 cu ft

Economical / Quiet

• Cabinet Liner: ABS

Features

• Configuration: Full Door with Pull-Out Drawer
• Control Type: Upfront Electronic Temperature Controls with Digital Temperature Display
• Defrost Type: Frost Guard
• Dispenser: Non-Dispenser
• Door Alarm: Yes
• Door Liner: HIPS
• Exterior Style: Free-Standing
• Filter Location: Upper right corner
• Freezer Cabinet Drawer Features: Freezer Drawer
• Freezer Features:
  • Interior Lighting - LED
  • Ice Bucket
• Freezer Storage Baskets:
  • 2 Total
  • 1 Full-Width, Full-Extension Plastic
• Fresh Food Cabinet Drawers:
  • 1 Clear Snack Drawer
  • 2 Humidity Controlled Drawers
• Fresh Food Cabinet Shelves:
  • 3 Total - Glass
  • 2 Adjustable
  • 2 Full-Width
• Fresh Food Door Bins:
  • 4 Total - Clear
  • 2 Full-Width
  • 2 Adjustable
• Fresh Food Features: Interior Lighting - LED
• Icemaker: Factory-Installed
• Leveling System: 2 Point Front Adjustable
• OU Certified: OU/CRC Enhanced Shabbos Mode (when used with Shabbos Keeper, sold separately)
• Performance Features: Easily Removable Door Gaskets
• Product Type: Bottom Freezer Refrigerator
• Refrigerant Type: R600a
• Sabbath Mode: Optional
• Temperature Management Features:
  • Turbo Cool setting
  • Multiflow Air System with Electronic Sensors
• Water Filtration:
  • GE Water Filtration (XWFE Filter)
  • Water Filter Indicator Light
• WiFi Connect: Optional (requires part no. PBX23W00Y0)

Power / Ratings

• Volts/Hertz/Amps: 120v; 60Hz; 15A

Warranty

• Labor Warranty: Limited 1-year entire appliance
• Parts Warranty: Limited 1-year entire appliance
• Warranty Notes: See written warranty for full details

Weights & Dimensions

• Approximate Shipping Weight: 275 lb
• Back Air Clearances: 2 inches
• Case Depth Without Door: 30 5/8 inches
• Depth with Door Open 90°: 65 1/8 inches
• Depth Without Handle: 35 inches
• Height to Top of Case: 68 5/8 inches
• Height to Top of Hinge: 69 7/8 inches
• Net Weight: 253 lb
• Overall Depth: 37 1/2 inches
• Overall Height: 69 7/8 inches
• Overall Width: 32 3/4 inches
• Side Air Clearances: 1/8 inch
• Top Air Clearances: 1 inch
• Width with Door Open 90 Degrees Including Handle: 36 7/8 inches
