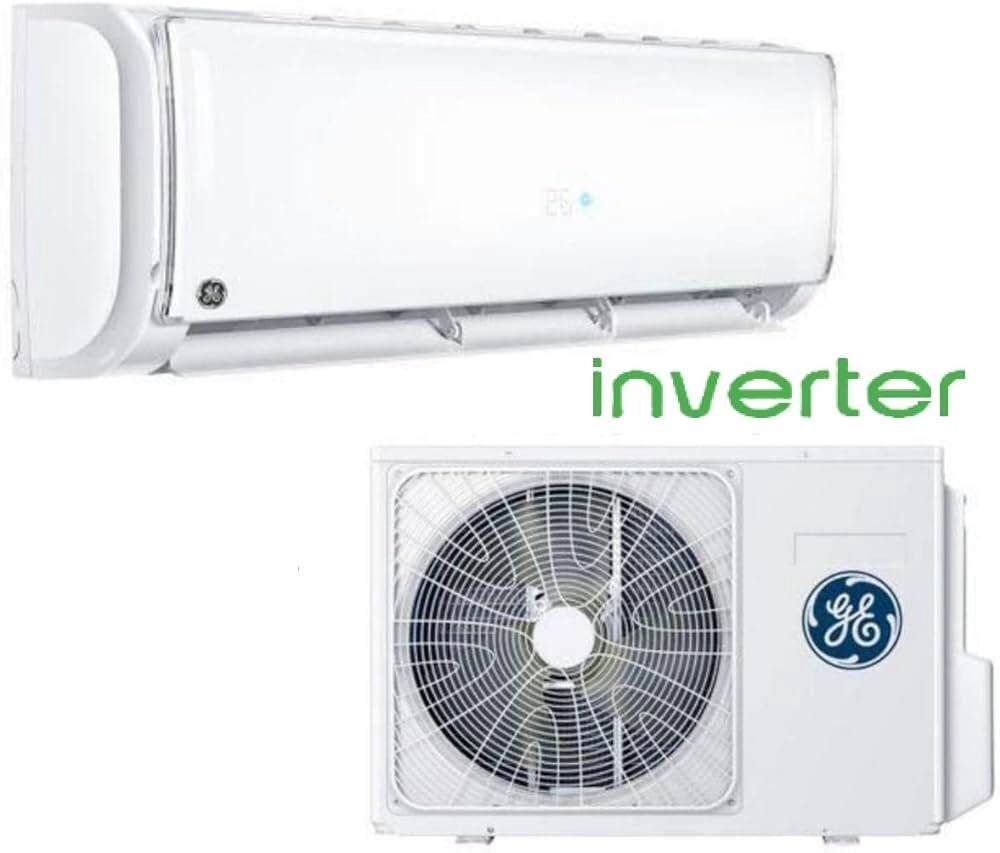

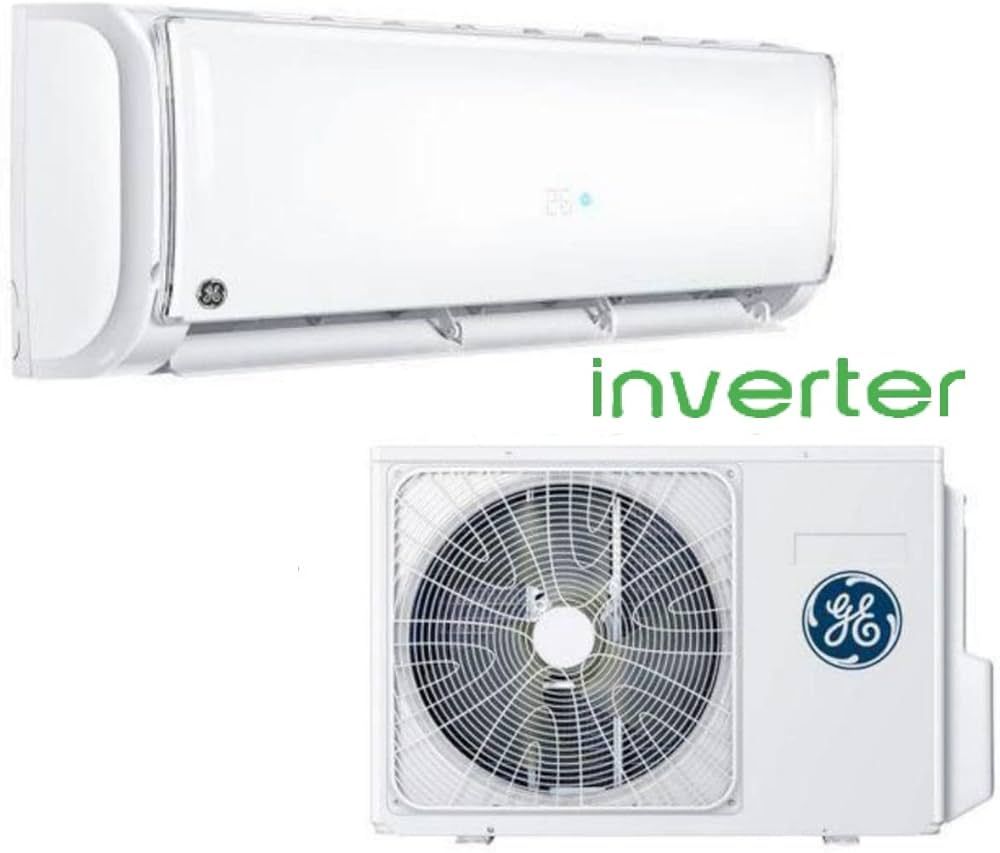

GE 24,000 BTU Inverter Airco 220v 20 Seer

A GE 24,000 BTU (2-Ton) ductless mini-split system is designed to cool and heat larger spaces, typically between 1,000 and 1,500 sq. ft. Examples include large open living areas, master suites, or commercial spaces.

Technical Specifications

Core Performance Features

• Variable-Speed DC Inverter Rotary Compressor: Dynamically ramps up or down to hold exact room temperatures while reducing initial electrical starting surges.
• Hydrophilic Blue Fin Coils: Standard protective coating on outdoor and indoor aluminum heat exchangers to optimize condensate drainage and resist rust.
• SmartHQ Wi-Fi Control: Built-in smart capabilities allow remote monitoring, scheduling, and adjustments via mobile phone.
• 4-Way Auto-Louver Airflow: Motorized horizontal and vertical louvers sweep air evenly across wide rooms.

Installation & Field Diagnostics

1. 220V Line Power: Feeds from a dedicated 25A or 30A double-pole breaker directly to an outdoor disconnect switch box using 10/2 NMB or THHN copper line.
2. Interconnecting Wiring: A 14/4 AWG stranded/shielded cable connects the outdoor condenser to the indoor high-wall air handler for power delivery and digital communication.
3. Piping & Evacuation: Connects with 1/4" and 5/8" flared copper linesets. The system requires nitrogen pressure leak-testing and a deep vacuum pull below 500 microns prior to releasing the factory refrigerant charge.
